Home EV Chargers

Home EV Chargers




We have a wide range of smart EV charging stations for home use. Our stations are intuitive and easy to use. Their assembly, as well as the process of loading the vehicle itself, run smoothly and efficiently.

With home EV charging station, you can charge your car whenever you want, and by using the night energy tariff you can save a lot.

We offer charging stations for electric cars in various equipment variants - with a type-2 socket or a charging cable. In addition, the chargers are equipped with an RFID authorization function, a mobile application and the necessary security.

Smart Mini Wallbox

Smart Mini Wallbox






Smart Mini Wallbox by Teison is a smart and compact electric vehicle charging station with a compact size and stylish design. Easy control via the dedicated mobile app makes the Smart Mini Wallbox the most reliable and safe home charger. The charging station is equipped with a 4-meter charging cable and the most popular among electric vehicles type-2 connector.


COMPACT
Minimalist and compact design.
INTELLIGENT
Control via mobile app.
Plug&Play function.
SAFE
IP65 protection degree. AC+DC protection.
FAST CHARGING
Maximum charging power up to 22kW.
CLOUD-BASED DATA
Possibility of remote control.




The Smart Mini Wallbox can be controlled by the mobile app, which allows you to:
  • remotely start and stop charging,
  • setting charging parameters,
  • monitoring charging status,
  • scheduling charging,
  • collecting data on operations;

Smart Mini Wallbox has Plug & Play mode, with which the EV charging process starts automatically as soon as the charger is connected to the car, without the need for setup.





Smart Mini Wallbox is made of strong materials that guarantee resistance to the elements. As a result, it can be safely installed both indoors and outdoors.


ORDER NOW

Smart Mini Wallbox charging station is very safe to use. It meets the EN 61851-1 safety standard, protects internal components from harmful external conditions and detects AC + DC faults. In addition, the charger is certified by TÜV SÜD.





POSSIBLE INSTALLATION LOCATIONS

  • PRIVATE HOUSES

  • PARKING LOTS

  • COMPANIES AND HOTELS

  • CAR DEALERS

  • CAR REPAIR SHOPS

  • SHOPPING CENTRES


TECHNICAL DATA
Charging current 16/32A
Frequency 50/60Hz
Charging power 7kW/ 11kW/ 22kW
Operating temperature  -30° to +60°C
Humidity max. 95% RH
Enclosure rating IP65 / IK08
Dimensions 225 x 225 x 100mm
Weight

+/- 5kg

Charging connector 4m cable+type-2 connector
Installation method wall mounted/dedicated pedestal (optional)


Smart Mini Wallbox (S)

Smart Mini Wallbox (S)






Smart Mini Wallbox by Teison is an intelligent and compact EV charging station with a small size and stylish appearance equipped with a charging socket. Easy control via mobile app makes the Smart Mini Wallbox the most reliable and safe EV charger.


COMPACT
Minimalist design WITH SOCKET.
INTELLIGENT
Control via mobile app. Plug&Play function.
SAFE
IP65 protection degree. AC+DC protection.
FAST CHARGING
Maximum charging power up to 22kW.
CLOUD-BASED DATA
Possibility of remote control.



The Smart Mini Wallbox can be controlled by the mobile app, which allows you to:
  • remotely start and stop charging,
  • setting charging parameters,
  • monitoring charging status,
  • scheduling charging,
  • collecting data on operations;
Smart Mini Wallbox has Plug & Play mode, with which the EV charging process starts automatically as soon as the charger is connected to the car, without the need for setup.





Smart Mini Wallbox is made of firm materials that guarantee resistance to the elements. As a result, it can be safely installed both indoors and outdoors


ORDER NOW

Smart Mini Wallbox with socket is very safe to use. It meets the EN 61851-1 safety standard, protects internal components from harmful external conditions and detects AC + DC faults. In addition, the charger is certified by TÜV SÜD.





POSSIBLE INSTALLATION LOCATIONS

  • PRIVATE HOUSES

  • GARAGES

  • COMPANIES AND HOTELS

  • CAR DEALERS

  • WORKSHOPS

  • SHOPING CENTERS


TECHNICAL DATA Smart Mini Wallbox 7kW Smart Mini Wallbox 11kW Smart Mini Wallbox 22kW
Nominal Voltage 230V AC ± 10% 380V AC ± 10% 380V AC ± 10%
Max. output current 32A 16A 32A
Max. charging power 7kW / 1-phase 11kW / 3-phase 22kW / 3-phase
Frequency 50/60 Hz
Residual current protection type A (AC 30MA)
Chaarging connector socekt type-2
Installation wall/ dedicated pedestal
Standard bezpieczeństwa EN- 61851-1
Gwarancja 2 lata
Protection degree IP65
Over/under voltage protection, overvoltage protection, overheat protection, leakage protection, short circuit protection, lightning protection
Operating temperature -30 ℃ ~ +60℃
Bluetooth  default
RFID optional (+ 2 cards)
Dimensions 234*234*150mm
Waga ±5kg

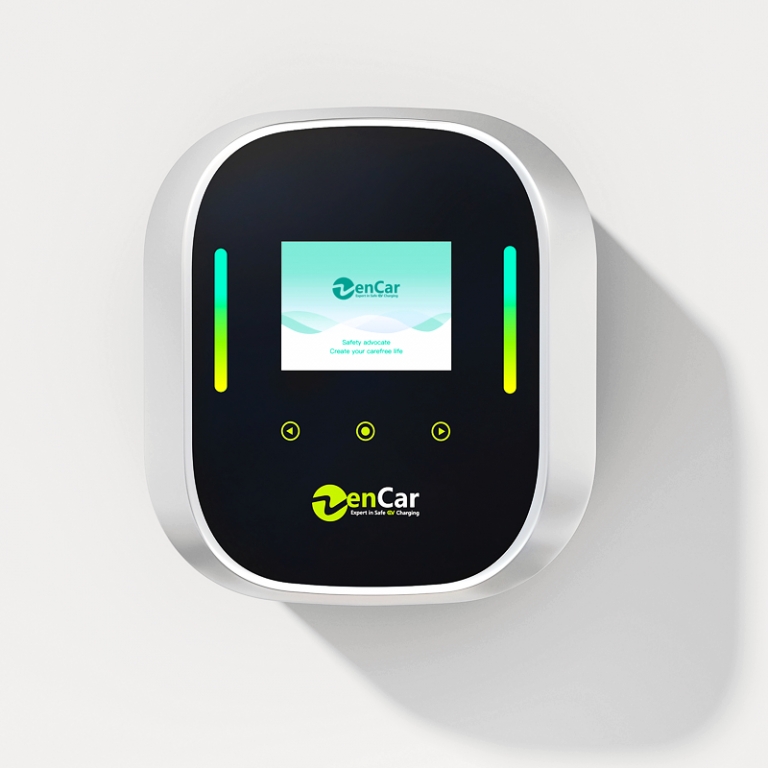

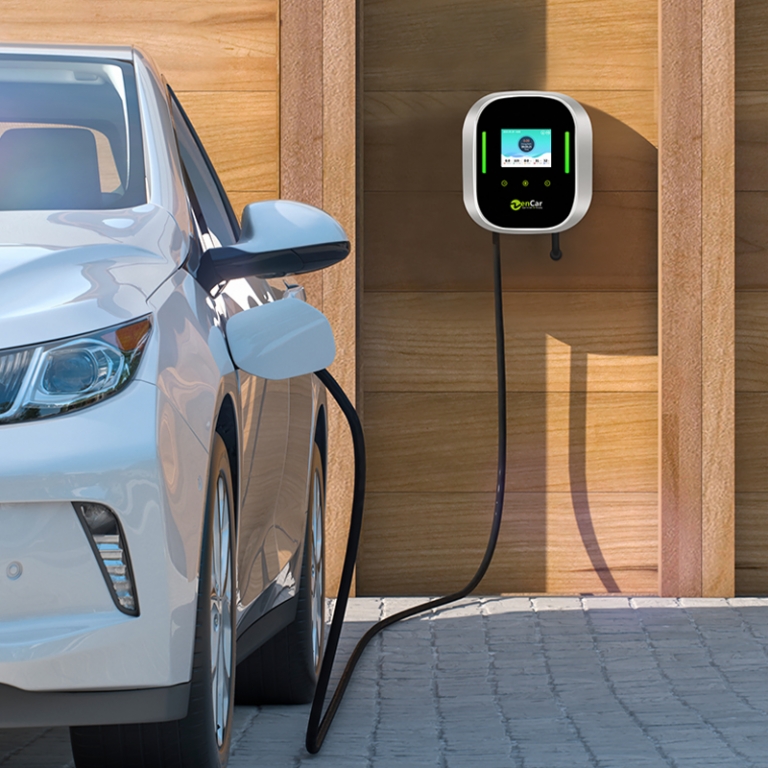

Wallbox Home Pro

Wallbox Home Pro

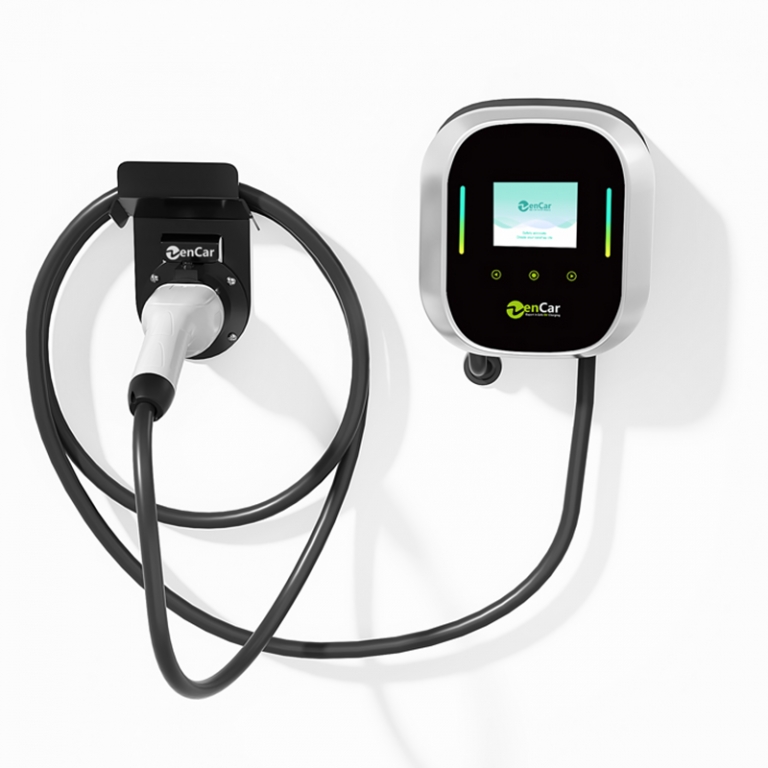

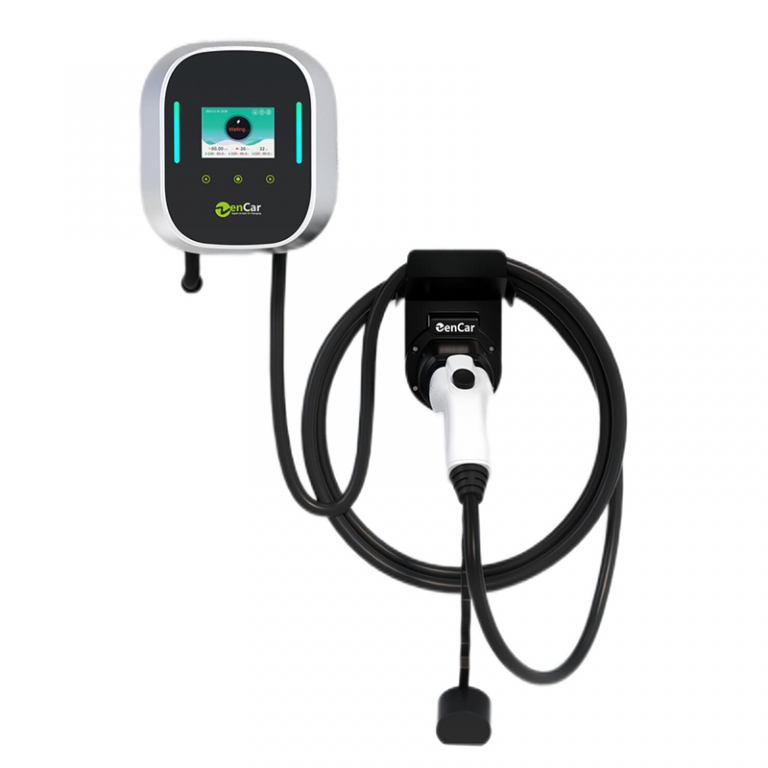

Wallbox Home Pro by Teison is an electric vehicle charging station that has been designed for convenient charging of vehicles, mainly on private properties. Available in two equipment variants: with an integrated 4-metre cable or type-2 socket, the charging station features a colour LCD display and RFID card reader.


USER-FRIENDLY INTERFACE
Intuitive operation guaranteed
LCD DISPLAY
Colour display indicates charging status in real time.
RFID AUTHENTICATION
Start and stop charging by means of RFID card.
ROBUST DESIGN
IP65 protection confirms the robustness of the device.
HIGH USER SAFETY
The Wallbox Home Pro has all the necessary electrical safety features and a safety button to stop charging with a single click.

ORDER NOW




Wallbox Home Pro charging station has a built-in RFID card reader so that the station can only be used by authorised persons.


RFID authorisation function is particularly useful in public car parks or commercial premises such as hotels, shopping centres or restaurants.

Each Wallbox Home Pro is equipped with 3 RFID cards and 2 cards for charging power regulating.

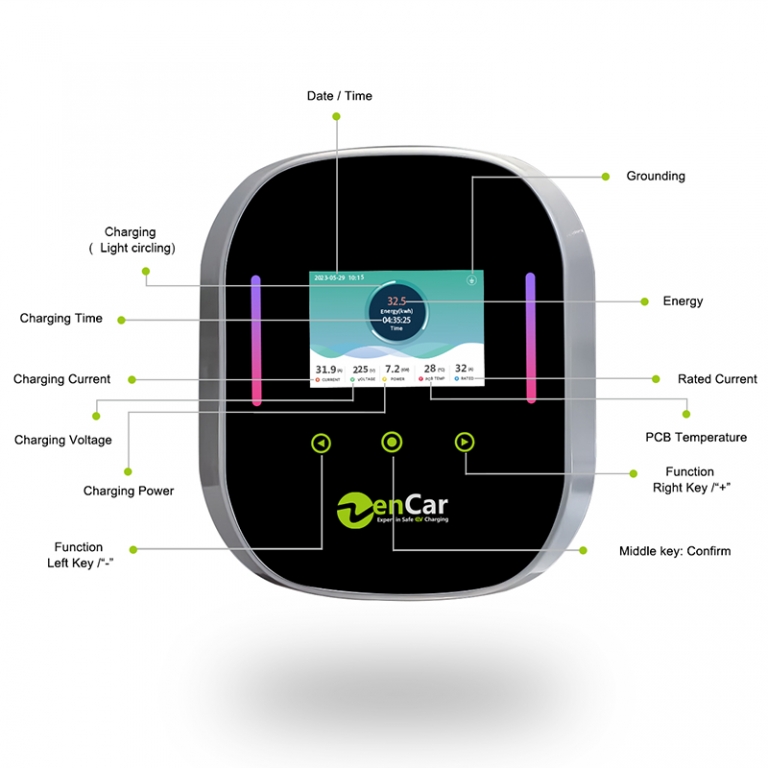

With bulit-in screen you can track the current charging status of the car and parameters such as voltage, charging current, amount of energy used, and vehicle charging time.


Charging station is made of a solid materials that guarantee resistance to external factors. It can be safely installed both inside and outside buildings.


ORDER NOW





Possible installation locations:

  • PRIVATE PROPERTIES

  • GARAGES

  • FIRMS AND HOTELS

  • CAR SHOWROOMS

  • CAR WORKSHOPS

  • SHOPPING CENTERS


TECHNICAL DATA
Prąd ładowania 16/32A
Frequency 50/60Hz
Charging power 7kW/ 11kW/ 22kW
Working temperature from -30° to +50°C
Humidity max. 95% RH
Enclosure rating IP65 / IK08
Dimensions 398 x 324 x 120mm
Weight

+/- 8kg

Charging connector 4m cable + socket type-2

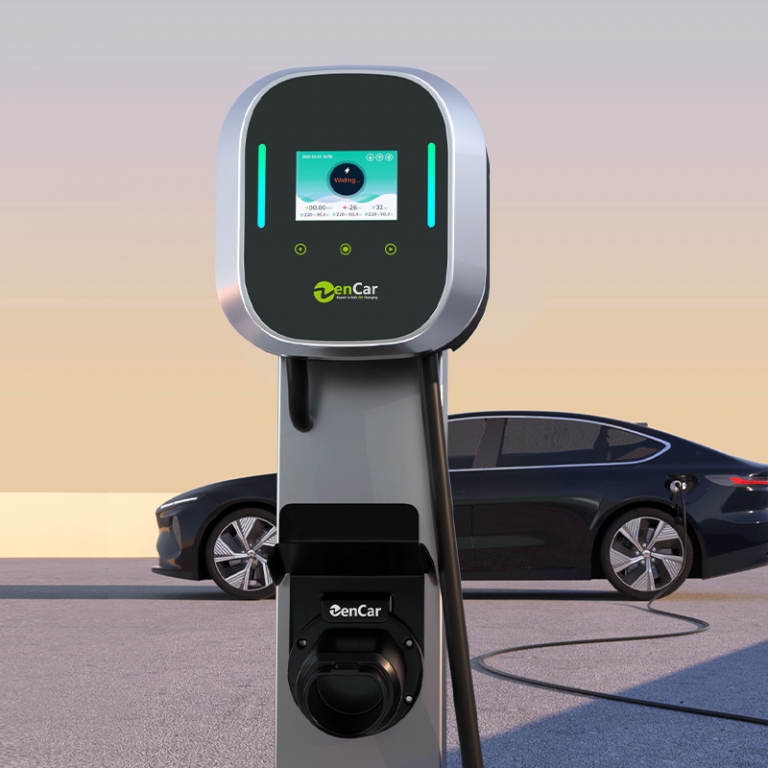

Installation wallmounted / on dedicated pedestal (optional)


Wallbox MaxiCharger

Wallbox MaxiCharger






Wallbox MaxiCharger form Autel is a smart, safe and extremely stylish charging station for electric vehicles. It has a built-in type-2 vehicle charging cable, a dedicated mobile application, an RFID card reader and supports the OCPP1.6 communication protocol.


SMART
Control via mobile application.

SAFE
Degree of protection IP65. AC+DC protection.

FAST
Maximum charging power up to 22kW.

GREAT DESIGN
The project was awarded in the world's largest design competition Red Dot Design.

OCPP1.6 PROTOCOL
Compliant with the OCPP1.6 protocol for commercial applications.




The Wallbox MaxiCharger charging station can be controlled by the MaxiCharger mobile application, which allows you to:
  • start and stop charging the vehicle remotely,
  • setting loading parameters,
  • charging status monitoring,
  • charging time scheduling,
  • collecting data on performed operations,
  • vehicle battery status tracking;




The MaxiCharger charging station is highly secure. Built-in protections prevent irregularities in the flow of electricity and unwanted failures. Real-time data analysis allows for a quick response to any safety alerts.


ORDER NOW





POSSIBLE INSTALLATION PLACES

  • PRIVATE HOUSES

  • GARAGES

  • COMPANIES AND HOTELS

  • SHOW ROOMS

  • CAR RENTALS

  • SHOPPING CENTERS


TECHNICAL DATA Wallbox MaxiCharger 7.4kW Wallbox MaxiCharger 11kW Wallbox MaxiCharger 22kW
Nominal voltage 230V AC ± 15% 400V AC ± 15% 400 AC ± 15%
Output current 32A 16A 32A
Maximum output power 7.4kW / 1-phase 11kW /3-phases 22kW / 3-phases
Frequency 50hz
RFID authorization Yes
Residual current protection AC 30mA, DC 6mA
Charging connector 5m cable+ type-2 socket
Indicator light LED Light
Installation on the wall

Wallbox PulseQ AC Home

Wallbox PulseQ AC Home






PulseQ Home is a reliable charging station for electric vehicles, which offers many advanced functions and the highest safety of use. Access to the interface of the charging station is possible through a dedicated mobile application.


COMPACT SIZE & EASY INSTALLATION
The small size of the charger guarantees easy mounting on a wall or a special post.

RFID AUTHORIZATION
Start and stop charging with a RFID card.

MOBILE APP
Operating the charging station via an app.

EMERGENCY BUTTON STOP
Stop an EV charging process with one press.

OCPP 1.6J SUPPORTED
The PulseQ supports the OCPP 1.6J protocol, which enables station network management with dedicated software.


ORDER NOW




DEDICATED MOBILE APP PulseQ


  • remote management of the charging station,
  • start/stop charging,
  • configuration of charging parameters ;
  • real-time device monitoring;
  • collecting data on performed operations;


EASY INSTALLATION

Thanks to its compact dimensions, the PulseQ charging station is really easy to install. It can be hung on the wall or mounted on a dedicated post.


The solid construction and the materials used guarantee resistance to external factors, which means that the charger can be mounted both in the garage and outside the building.


ORDER NOW





Possible installation locations

  • PRIVATE HOUSES

  • GARAGES

  • COMPANIES AND HOTELS

  • CAR SHOW ROOMS

  • CAR RENTALS

  • SHOPPING CENTERS


Technical data PulseQ Home 7kW PulseQ Home 11kW PulseQ Home 22kW
Nominal voltage 230V AC 400V AC 400V AC
Max. output current 32A 16A/32A 16A/32A
Max. charging power 7kW / 1-faza 11kW / 3-fazy 22kW / 3-fazy
Frequency 50/60 Hz
Residual current protection RAMU, Type A IΔn=30mA + IΔdc=6mA
Charging connector 5m cable (optional 7.5m) + plug type-2
Indicator light 4 x LED indicators
Installation wall/ dedicated pedestal
Protection degree IP65
Enclosure PC + ASA
Security Over/under voltage protection, overvoltage protection, overheat protection, leakage protection, short circuit protection, lightning protection
Operating temperature -30 ℃ ~ +55℃
Storage temperature -40 ℃ ~ +70℃
WiFi default
PulseQ App (iOS, Android) remote start and stop of vehicle charging, setting charging parameters, scheduling charging time, viewing charging status, setting charging modes, collecting data on performed operations
Dimensions  310*220*95mm
Weight  7-8kg


Wallbox PulseQ AC Lite

Wallbox PulseQ AC Lite






PulseQ Lite is the latest electric vehicle charging station that was created with user convenience in mind. It has a charging cable with a Type-2 plug, a mobile application, and an RFID card reader. It was designed for charging electric vehicles on private properties.


3 CHARGING MODES
PulseQ AC Lite offers Plug&Play, control via a mobile application, and charging starts using RFID cards.

RFID AUTHORIZATION
Start and stop charging with a RFID card.

MOBILE APP
Operating the charging station via an app.

VOICE CONTROL
The station supports voice activation, which allows you to seamlessly integrate the station with smart homes via Amazon Alexa..

CHARGING SCHEDULE
 Personalized charging schedules available according to your needs and preferences. Specific charging times can be set to take advantage of cheaper electricity, optimizing energy consumption and reducing operating costs.


ORDER NOW




DEDICATED MOBILE APP PulseQ

  • remote management of the charging station,
  • start/stop charging,
  • configuration of charging parameters ;
  • real-time device monitoring;
  • collecting data on performed operations;


EASY INSTALLATION
Thanks to its compact dimensions, the PulseQ charging station is really easy to install. It can be hung on the wall or mounted on a dedicated post.
The solid construction and the materials used guarantee resistance to external factors, which means that the charger can be mounted both in the garage and outside the building.



ORDER NOW





Possible installation locations

  • PRIVATE HOUSES

  • GARAGES

  • FIRMS AND HOTELS

  • CAR DEALERSHIPS

  • CAR WORKSHOPS

  • SHOPING CENTRES


TECHNICAL DATA Wallbox PulseQ AC Lite 7kW Wallbox PulseQ AC Lite 11kW Wallbox PulseQ AC Lite 22kW
Nominal voltage 230V AC 400V AC 400V AC
Max. output current 32A 16A/32A 16A/32A
Max. charging power 7kW / 1-phase 11kW / 3-phase 22kW / 3-phase
Frequency 50/60 Hz
Residual current protection Type A + DC6mA
Charging connector 5m cable + type-2 socket
Indicator light LED light indicators
Installation wall/ dedicated pedestal
Protection degree IP65
Enclosure PC + Aluminium
Security Over/under voltage protection, overvoltage protection, overheat protection, leakage protection, short circuit protection, lightning protection
Operating temperature -30 ℃ ~ +50℃
Storage temperature -40 ℃ ~ +70℃
Communication WiFi, Bluetooth, mobile app, Ethernet, RFID (2 cards)
PulseQ mobile app (iOS, Android) remote start and stop of vehicle charging, setting charging parameters, scheduling charging time, viewing charging status, setting charging modes, collecting data on performed operations
Dimensions 340×190×97mm
Weight 7-8kg


Wallbox PulseQ AC Pro

Wallbox PulseQ AC Pro



PulseQ Pro is the latest electric vehicle charging station from TOPDON, available in three power variants, equipped with a type-2 Socket and many innovative functions for maximum convenience of use.


3 CHARGING MODES
PulseQ AC Pro offers Plug&Play, control via a mobile application, and charging starts using RFID cards.

RFID AUTHORIZATION
Start and stop charging with a 2 RFID cards.

MOBILE APP
Operating the charging station via PulseQ mobile app.

VOICE CONTROL
The station supports voice activation, which allows you to seamlessly integrate the station with smart homes via Amazon Alexa.

CHARGING SCHEDULE
 Personalized charging schedules available according to your needs and preferences. Specific charging times can be set to take advantage of cheaper electricity, optimizing energy consumption and reducing operating costs.


ORDER NOW




DEDICATED MOBILE APP PulseQ

  • remote management of the charging station,
  • start/stop charging,
  • configuration of charging parameters,
  • real-time device monitoring,
  • collecting data on performed operations.

EASY INSTALLATION
Thanks to its compact dimensions, the PulseQ charging station is really easy to install. It can be hung on the wall or mounted on a dedicated post.

The solid construction and the materials used guarantee resistance to external factors, which means that the charger can be mounted both in the garage and outside the building.





ORDER NOW





Possible installation locations

  • PRIVATE HOUSES

  • GARAGES

  • FIRMS AND HOTELS

  • CAR DEALERSHIPS

  • CAR WORKSHOPS

  • SHOPING CENTRES


TECHNICAL DATA Wallbox PulseQ AC Pro 7kW Wallbox PulseQ AC Pro 11kW Wallbox PulseQ AC Pro 22kW
Nominal voltage 230V AC 400V AC 400V AC
Max. output current 32A 16A/32A 16A/32A
Max. charging power 7kW / 1-phase 11kW / 3-phase 22kW / 3-phase
Frequency 50/60 Hz
Residual current protection Type A + DC6mA
Charging connector Type-2 socket
Indicator light LED light
Installation wall/pedestal
Protection degree IP54, IK10
Enclosure PC + Aluminium
Security Over/under voltage protection, overvoltage protection, overheat protection, leakage protection, short circuit protection, lightning protection
Operating temperature -30 ℃ ~ +50℃
Storage temperature -40 ℃ ~ +70℃
Communication WiFi, Bluetooth, aplikacja mobilna, Ethernet, RFID (2 cards)
PulseQ mobile app (iOS, Android) remote start and stop of vehicle charging, setting charging parameters, scheduling charging time, viewing charging status, setting charging modes, collecting data on performed operations
Dimensions 340×190×97mm
Weight 7-8kg


Wallbox TeltoCharge

Wallbox TeltoCharge






TeltoCharge is an electric vehicle charging station with a max. power of 22 kW, which stands out not only for its advanced functionalities but also for its beautiful and compact design which gives it a unique and exceptionally aesthetic look. Available in two equipment variants: with an integrated 5-meter cable or type-2 socket.
MAXIMUM CHARGING POWER UP TO 22kW
High charging power ensures fast vehicle charging time.

USER-FRIENDLY INTERFACE
Intuitive and easy operation.

NFC AUTHORIZATION
Access to the station is only for authorized users.

OCPP 1.6J PROTOCOL SUPPORT
Possibility to manage the entire network of charging stations.

✓ HIGH LEVEL OF SAFETY
The charging station has all the necessary protections to ensure safe vehicle charging.

ORDER NOW




The TeltoCharge charging station is not only a functional device but also a true example of excellent design. Its elegant and compact housing made of high-quality wood gives the station a unique appearance that catches the eye and distinguishes it from other charging stations available on the market.

TeltoCharge is an excellent choice for individuals looking for not only a practical device for charging electric vehicles but also a stylish addition that blends into the aesthetics of the surrounding space. With its unique design, the TeltoCharge station becomes a beautiful element in homes, businesses, and other public places.





A transparent and user-friendly interface is one of the main advantages of the TeltoCharge charging station. With its easy-to-use interface, users have convenient access to information about the current status of vehicle charging and any potential issues.

The light indicators clearly communicate the progress of charging, enabling users to have full control over the process and quickly respond to any emergency situations.




TeltoCharge station has been designed with the highest level of user safety in mind. It features NFC authorization function that ensures the station will only be used by authorized individuals. This advanced technology eliminates any risks associated with unauthorized access or usage of the station by unauthorized persons.



The TeltoCharge mobile application is an additional advantage of this innovative product, providing users with full control over the charging station. With the mobile application, users can manage the charging station from anywhere using their smartphones.



The application allows users to check the charging status, set charging schedules, monitor energy consumption, and receive real-time notifications. As a result, regardless of their location, the owner of the TeltoCharge station has complete control over the charging process.



ORDER NOW


The TeltoCharge charging station is compatible with the Open Charge Point Protocol (OCPP). This advanced solution allows for remote monitoring and management of the charging process.

With OCPP protocol, users have full control over their charging sessions, and station operators can effectively manage the entire charging station system.





Possible Installation Places

  • PRIVATE PROPERTIES

  • GARAGES

  • COMPANIES AND HOTELS

  • CAR DEALERSHIPS

  • AUTOMOTIVE WORKSHOPS

  • SHOPPING CENTERS


  TeltoCharge 11kW (S) TeltoCharge 22kW (S)
Voltage 400V 400V
Max. current 16A 3-phase 32A 3-phase
Max. charging power 11kW 22kW
Charging connector cable 5m + plug type-2/ socket type-2 (S)
Color Optional: Accoya Wood, Brown, Burgund, Slate Grey, White
Differential Current Protection 20mA AC / 6mA DC*
Communication NFC Authorization, Ethernet, WiFi, Bluetooth, OCPP 1.6 (J-SON)
Warranty 3 years
Dynamic Load Balancing ability to connect with a dedicated smart meter and adjust energy consumption based on its readings
Protection Rating IP55, IK10
Protection Features differential current protection, undervoltage protection, overvoltage protection, electrostatic protection, and ground fault detection module
Compliance Standards FCC, UL2594 / CSA C22.2 No. 280, UL2231-1 / CSA C22.2 No. 281.1, UL2231-2 / CSA C22.2 No. 281.2
Operating Temperature -30 ℃ ~ +50℃
Weight 3kg
Dimensions 170 x 340 x 95 mm
Optional GSM modem
  *The differential current switch is not included in the package and needs to be purchased separately.
If the home network already has a differential current switch installed, an additional one is not required.

Wallbox Duosida WD

Wallbox Duosida WD


Wallbox Duosida WD electric car charging station with a power of 11kW is an intelligent, extremely safe and stylish electric vehicle charging station, equipped with a large 2.0′ OLed display mounted in the its case, that provides information about the charging parameters and the amount of energy used. The wallbox offers reliability and ease of use thanks to 5-meter long charging cable.



apb112 emulator kluczyka


  • Duosida charging station is a leader in its category when it comes to charging power,

  • Large 2.0′ OLed Display with full information about the status, charging power, time and amount of electricity consumed,

  • The charger has a built-in 5-meter cable with a Type 2 plug (IEC62196 / Mennekes) terminated with the most popular Type-2 connector among EVs, which is made of a lightweight, flexible and very durable material,

  • This compact 3-phase device reaches a power of up to 11kW and is able to charge an electric car in a very short time,

  • High degree of protection: IP54 makes the station ready to meet even the most demanding external conditions. It can be installed both inside and outside buildings,

  • It is an ideal solution for users looking not only for modern functions, but also for a product of high quality and durability,

  • Duosida charger has type A RCD electrical protection and an emergency stop button,

  • Installation of the station is extremely simple and user-friendly. Thanks to the well-thought-out design and compact dimensions, the charger can be installed both in the garage, in the parking lot and outside buildings.

  • Charging will start automatically when the cable is connected to the electric car or plug-in hybrid (PHEV) charging socket. You can end it with the red stop button, which is located on the right side of the housing, or simply by removing the cable from the car's charging socket. After the work of the Duosida charging station is completed, the plug can be conveniently placed in the holder located on the front of the housing.

  • The station is an ideal solution for customers who are preparing an EV charging station that not only fulfills its functions, but also is a stylish addition to the space in which it is located.

>>>EASY INSTALLATION>>> Set includes a steel mounting panel consisting of two parts. One part of it is mounted to the wall, the other to the back of the housing. This process does not require interference with the interior of the device.

apb112 emulator kluczyka

  • The station has been subjected to rigorous tests of the TÜV Rheinland institute, which guarantees its highest quality and safety of use.

  • Solid materials from which the charger was made guarantee resistance to adverse external factors. Protection degree: IP54.

  • Trustworthy and reliable - equipped with WIFI and a mobile application “DS charge” for download through Google play.

Simplicity of use is one of the key advantages of the Duosida charging station.




Set includes:
- Cable holder,
- Screws for holders,
- Wall charger,
- Charger holder,
- Screws for wall charger,
- Screws for fixing charging pile and holder,
- 3 RFID cards,
- Packing box,


POSSIBLE INSTALLATION PLACES

  • PRIVATE HOUSES

  • GARAGES

  • COMPANIES AND HOTELS

  • SHOW ROOMS

  • CAR RENTALS

  • SHOPPING CENTERS



Wallbox Zencar WPro

Wallbox Zencar WPro


ZENCAR WPro 11kW Wallbox made by reputable provider of solutions for electromobility Zencar company. The Wallbox is a smart, extremely safe and stylish EV vehicle charging station that is equipped with a large 3.5′ HD Display and a charging time scheduling function that allows you to set charging times. A unique combination of security, reliability and convenience of use.


ZENCAR WPro charging station is a leader in its category when it comes to charging power.
Large 3.5′ HD Display with full information about the status, charging power, time and amount of electricity consumed.

The charger has a built-in 5-meter cable equipped with the most popular Type-2 connector among EV vehicles, which is made of a lightweight, flexible and very durable material.

This compact 3-phase device reaches a power of up to 11kW and is able to charge an electric car in a very short time.

High resistance class: IP66 makes the station ready to meet even the most demanding external conditions. It can be installed both inside and outside buildings.

It is an ideal solution for users looking not only for modern functions, but also for a product of high quality and durability.

Safety & protection - residual current fuse included Type B RCD (AC 30mA+DC 6mA).

Zencar WPro installation is extremely simple and user-friendly. Thanks to the well-thought-out design and compact dimensions, the charger can be installed both in the garage, in the parking lot and outside building.

WPro wallbox is equipped with LED light indicators that clearly inform about the current charging status of the vehicle and any irregularities,

Station is an ideal solution for users who are looking for an EV charging station that not only fulfills its functions, but also is a stylish addition to it's surroundings.

>>>EASY INSTALLATION>>> It comes with wall mounts that allow user to mount the EV charging stations on the wall in your home or garage and a holder for the charging cable.


It is possible to adjust the charging current (6A to 16A), as well as set the time at which charging is to start. The station remembers the settings from the last charge, so you don't have to configure it every time you connect it to the car.

Zencar WPro car charging station is an EV station with high quality and extensive functions. The touch screen allows you to start and stop charging the vehicle, set charging parameters, plan charging time, and collect data on operations performed (up to 30 records).

Solid materials from which the EV charger was made guarantee resistance to adverse external factors.

Trustworthy and reliable - EV station offers 12 different protections when charging vehicles.

Simplicity of use is one of the key advantages of the Zencar charging station.




Set includes:
- Plug holder + Cable holder,
- Screws for holders,
- Wall charger,
- Charger holder,
- Screws for wall charger,
- Screws for fixing charging pile and holder,
- Packing box,


POSSIBLE INSTALLATION PLACES

  • PRIVATE HOUSES

  • GARAGES

  • COMPANIES AND HOTELS

  • SHOW ROOMS

  • CAR RENTALS

  • SHOPPING CENTERS



NORA Smart EV charger

NORA Smart EV charger

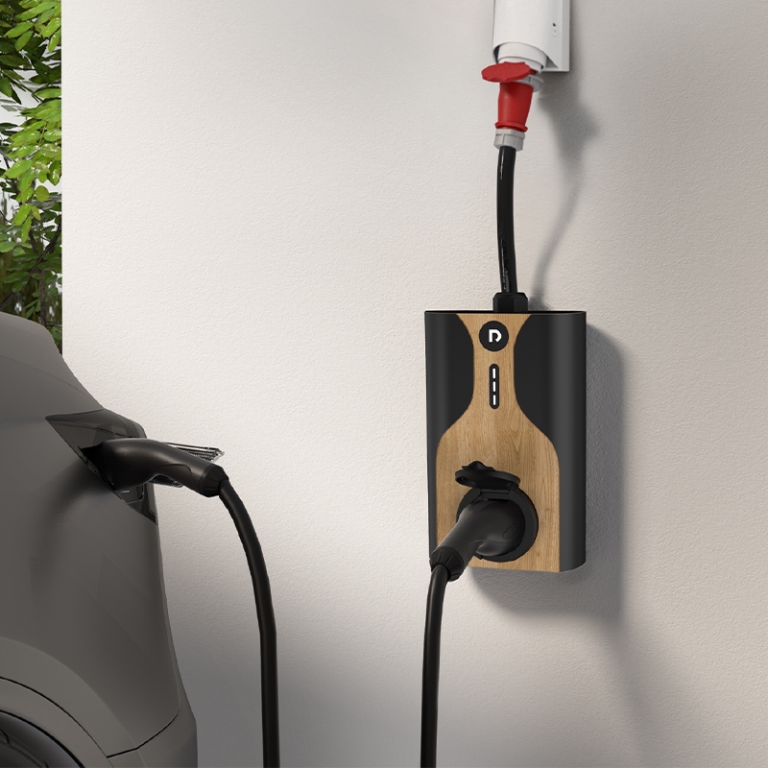

NORA Smart EV 2 - in - 1 charging station is a Wallbox and a portable EV charger. All In One. Robust design with charging power up to 22kW easily adapts to any installation. The station is equipped with a Type-2 socket.
2in1
NORA EV Charger can be used both as a wallbox and a portable charger.

STRESS-FREE INSTALLATION
Plug into the CEE socket or without opening the box.

HIGH EFFICIENCY
Max. 22kW charging power.

REPLACEABLE ADAPTERS
Charge with different types of power.

✓ MOBILE APP
A dedicated mobile app for remote management.

✓ RFID AUTHORIZATION
Start and stop charging using an RFID card. Cards are small enough to hang withcar keys.


ORDER NOW

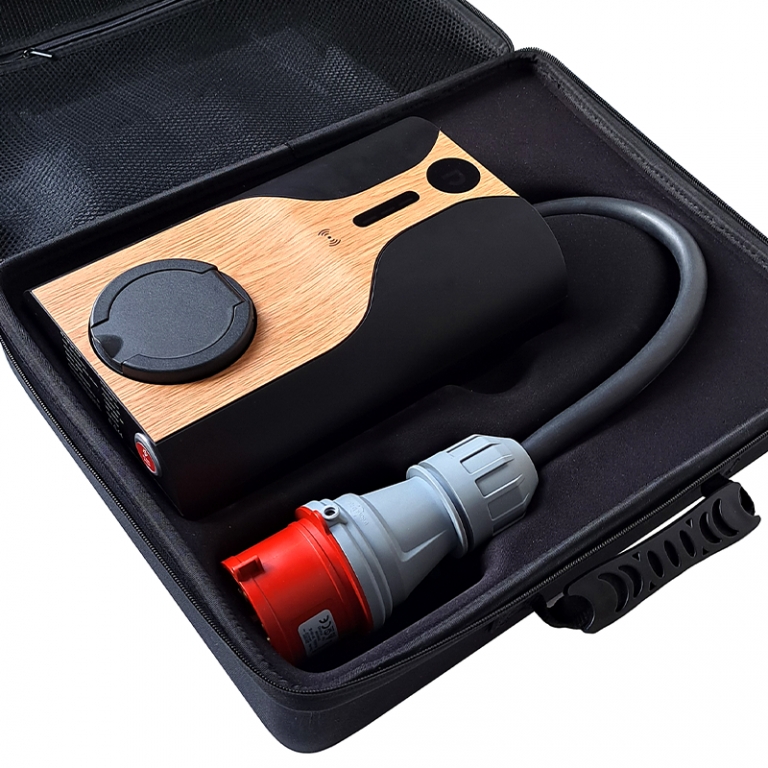

The set includes CEE Adaptors for any location with any grid supply capacity.

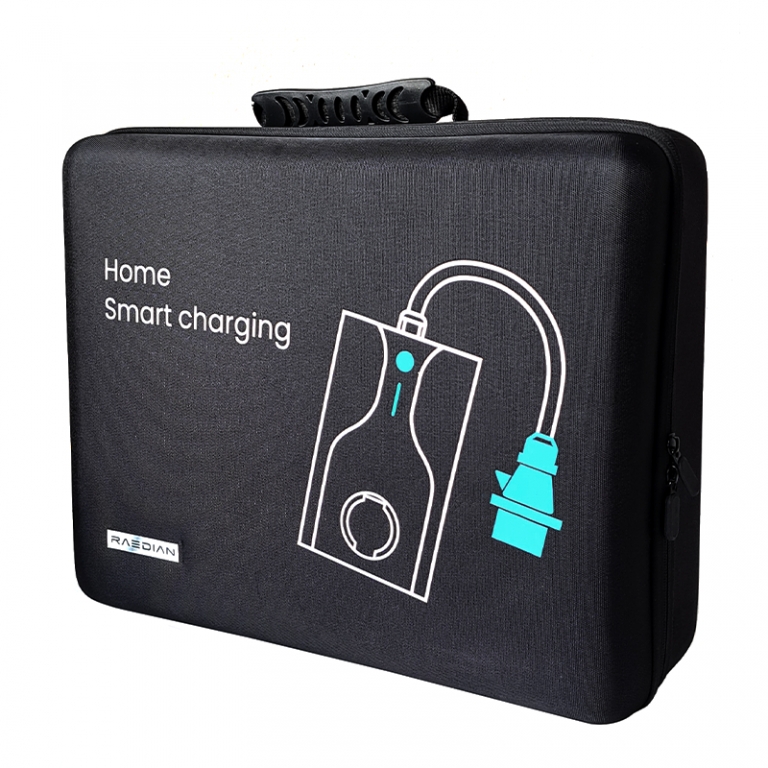

Thanks to the compact size (260x168x88mm) NORA EV Charge is really easy in transport. What is more, the NORA set includes stylish and solid transport bag.





A dedicated mobile application allows for remote monitoring and management of the charging process. Users can easily check the charging status, set schedules, and adjust settings, providing maximum convenience and control over the charging station.

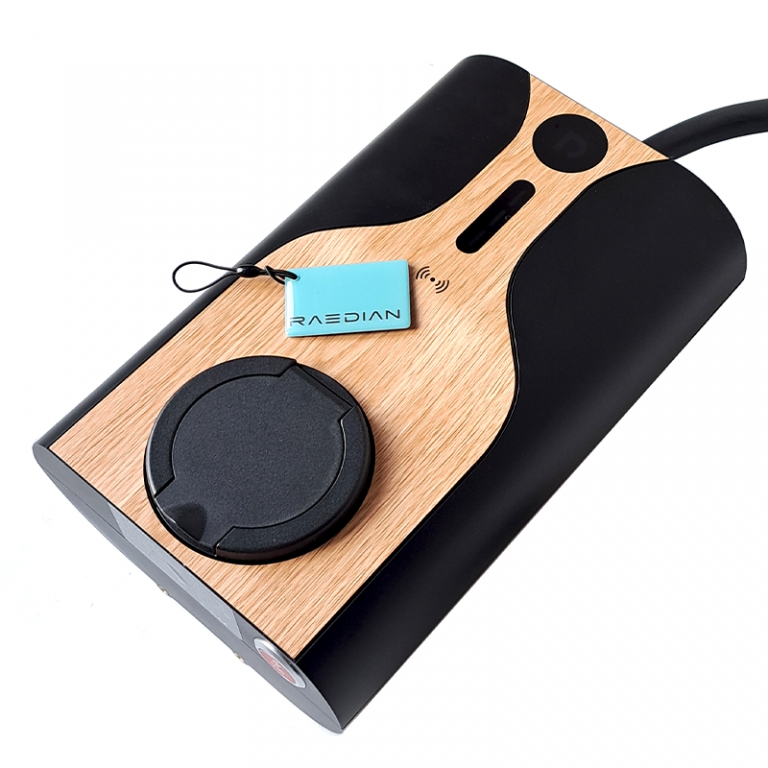

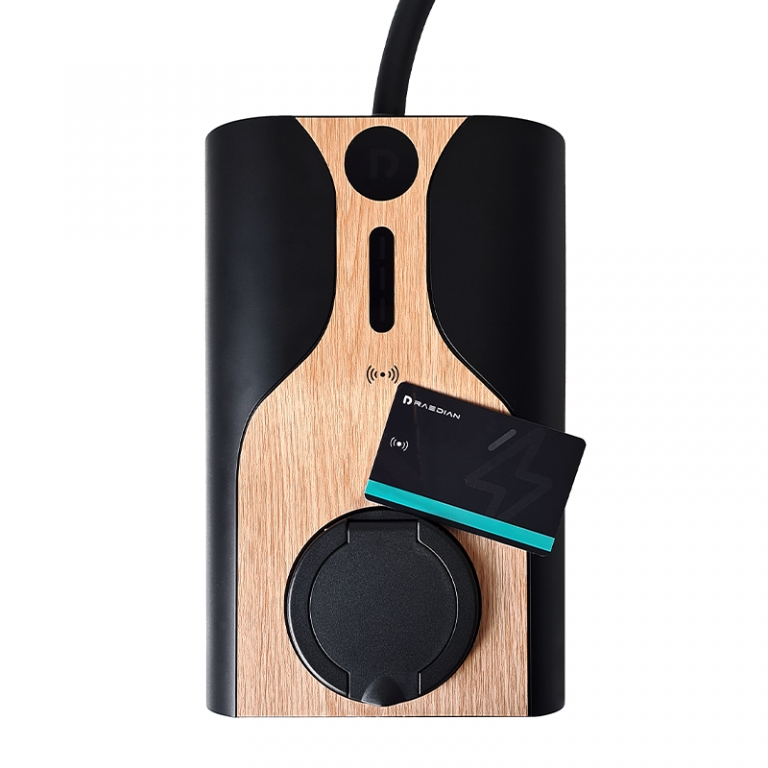

The NORA EV charging station is equipped with an RFID card reader, allowing for secure user authentication. Thanks to this feature, only individuals with an RFID card have access to the charger, ensuring control and security in using the device.

The NORA charging station is compatible with the Open Charge Point Protocol (OCPP). This advanced solution allows for remote monitoring and management of the charging process.

With OCPP protocol, users have full control over their charging sessions, and station operators can effectively manage the entire charging station system.





Possible Installation Places

  • PRIVATE PROPERTIES

  • GARAGES

  • COMPANIES AND HOTELS

  • CAR DEALERSHIPS

  • AUTOMOTIVE WORKSHOPS

  • SHOPPING CENTERS


  NORA EV 7,4kW NORA EV 22kW
Voltage 230V 400V
Max. current 32A 1-phase 32A 3-phase
Max. charging power 7.4kW 22kW
Charging connector cable 5m + plug type-2/ socket type-2 (S)
Communication NFC Authorization, WiFi, Mobile App Bluetooth, OCPP 1.6 (J-SON)
Protection Rating IP55, IK10
Compliance Standards IEC/EN 61851-1, IEC/EN 62955, IEC 61851-21-2, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, EN 61000-3-11, EN 61000-3-12, EN 300 328 V2.1.1, EN 300 330 V2.1.1
Operating Temperature -30 ℃ ~ +50℃
Weight 3kg
Dimensions 260x168x86mm


image/svg+xml
