J2534 Herramientas OEM Pass-Thru
J2534 Herramientas OEM Pass-Thru
Las herramientas de paso J2534 más avanzadas, innovadoras y fáciles de usar para el diagnóstico OEM.
J2534 Herramientas OEM Pass-Thru
CarDAQ-Plus 3
Operating systems compatibility |
Supports Windows Vista (32/64-bit) Windows 7 (32/64-bit) Windows 8 (32/644-bit) Windows 10 (32/64-bit) Consult OE website for their PC requirements |
Dimensions |
6.5" × 6" × 1.5" |
Input Voltage Range |
from 7VDC to 36VDC |
Supply Current |
220mA @ 7VDC 175mA @ 12VDC |
Operating temperature |
from 0°C to 60°C (ambient) |
Storage temperature |
from -20°C to 85°C (ambient) |
PC Communication |
USB v1.1 or higher (ambient) |
Set includes |
CarDAQ-Plus 3 J2534 pass-thru device, OBD2 Cable, USB Cable, QuickStart Guide |

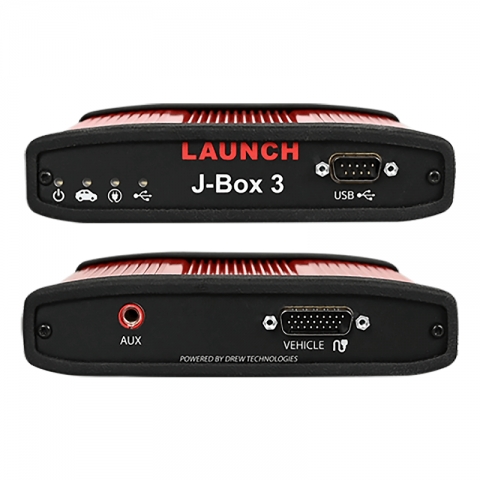

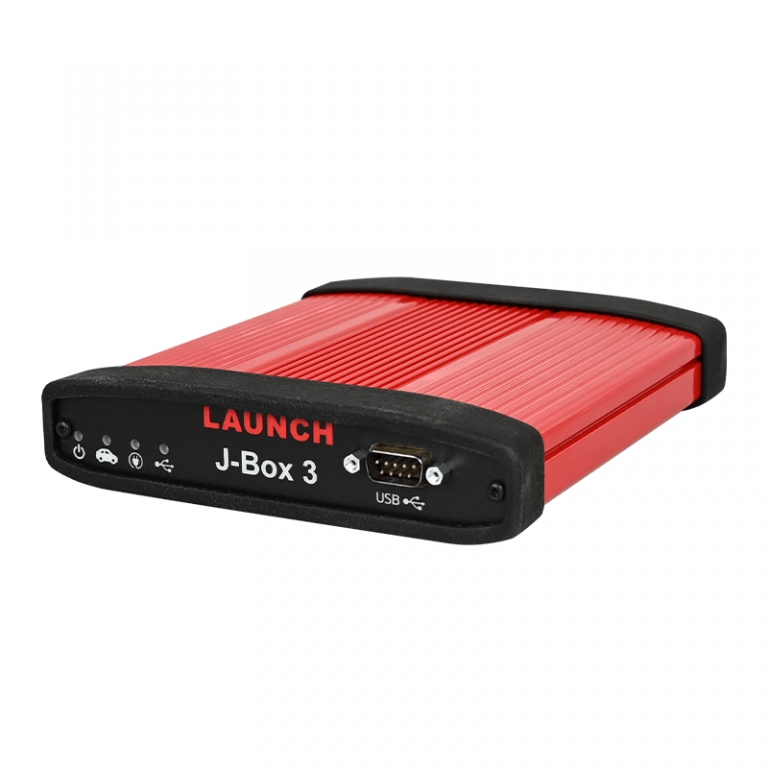

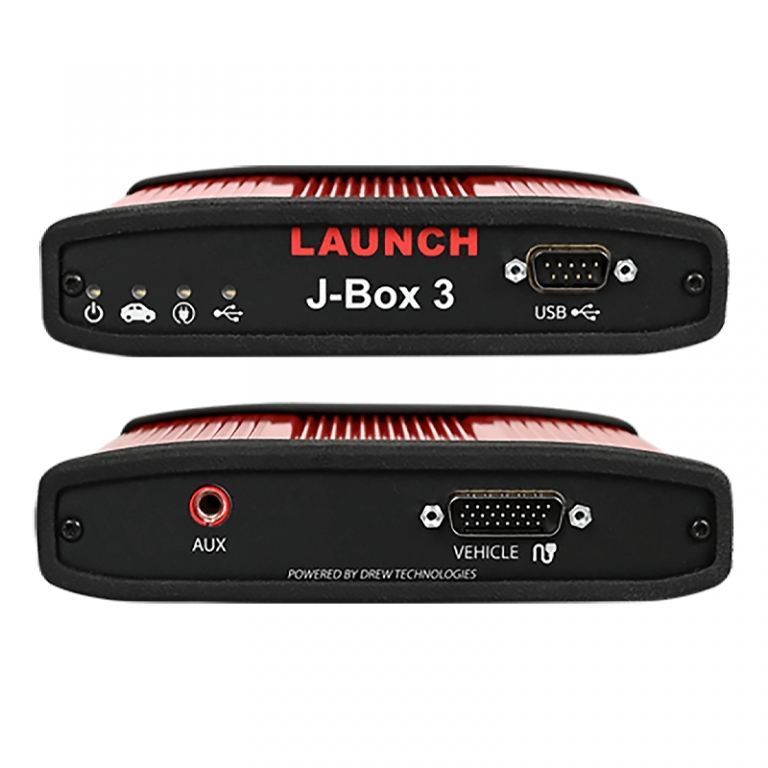

LAUNCH J-Box 3
Launch J-Box es el dispositivo de próxima generación con SAE J2534-1 y J2534-2 totalmente compatibles, que incluye: CAN FD, 4 CAN Channels, API v05.00 y DoIP. Este dispositivo está especialmente diseñado para realizar diagnósticos con cobertura de nivel de distribuidor (OEM) para vehículos globales. El estándar SAE J2534 está diseñado para una comunicación rápida entre una computadora y un vehículo. Funciona como una puerta de enlace entre la ECU del vehículo y la PC.
Launch J-Box 3 J2534 Pass-Thru ofrece:
