GYSFLASH 100-12 HF Inverter Charger

GYSFLASH 100-12 HF Inverter Charger



The GYSFLASH 100.12HF is a high-quality, high-power charger that provides a stabilized power supply. It may be used during the workshop works or in the showrooms.

The GYSFLASH 100.12 HF uses the FAN LESS technology (no external ventilation), thanks to which there is no dust in the device.

Due to its compact dimensions (height <11 cm), the GYSFLASH 100.12 HF can be placed under the vehicle.





GYSFLASH 100.12 HF functions:

  • Battery support: sustains 12V (liquid or gel) automotive battery during diagnostic work;
  • Advanced battery charger: ensures an ideal charging cycle for battery maintenance for the most modern vehicle;
  • Showroom mode: maintains batteries in showroom vehicles;
  • In «battery change» mode: maintains electrical supply to preserve vehicle memory settings;
  • High power stabilized supply: voltage & current adjustable;
  • Cable test and calibration;
  • Showroom mode lock;
  • “Easy charge” mode;
  • Automatic SOS recovery for sulfated battery.

GYSFLASH 100.12 have 5 modes including:

gysflashCHARGE MODE - for charging lead or lithium batteries from 20 Ah to 1200 Ah at 12V.
gysflashSUPPLY MODE «DIAG +» - for battery maintaining during diagnostic work. In this mode, it is possible to precisely determine the electrical voltage as required.

gysflash SUPPLY MODE «SHOWROOM» - battery support in exhibition cars.
gysflash «CHANGE BATTERY» MODE - prevents the loss of vehicle memory during battery replacement.
gysflash«POWER SUPPLY» MODE  - stabilized high power supply with adjustable maximum voltage and current.






The device is also equipped with an automatic restart function, which allows the charger to automatically start in the event of a power loss.






TECHNICAL SPECIFICATION
Nominal battery voltage:   12V
Battery capacity:  10 - 1200Ah
Maximum charging current: 100A
Voltage:  12,0 - 14,8V (nominal voltage: 13,5 V)
Maximum power:  1600W
Protection degree:  IP21
Supported languages:  19 languages, English included
Dimensions 32 x 29.2 x 10.5 cm
Weight:  6,1 kg

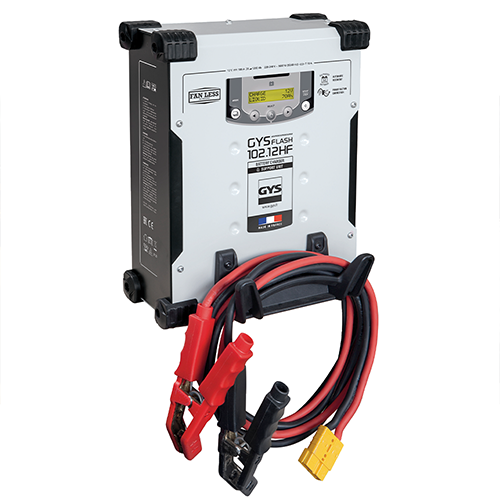

GYSFLASH 102-12 HF

GYSFLASH 102-12 HF


GYSFLASH 102-12 HF is a vertical charger with a switch-mode power supply, specifically designed for wall mounting or installation on a vehicle lift. It is highly efficient and capable of delivering up to 100 A of current.


The GYSFLASH 102-12 HF maintains a perfectly stable 12 V battery voltage during diagnostic procedures. It provides an optimal charging cycle recommended for maintaining the most advanced vehicles on the market.



The charger offers 5 operating modes:

  • Charging: for 12 V batteries (lead-acid / AGM / gel) with capacities from 20 to 1200 Ah.
  • Diag+: provides up to 100 A of current for 12 V batteries in vehicles undergoing diagnostic procedures.
  • Battery Replacement: ensures stabilized power supply to the vehicle during battery replacement, preserving memory settings.
  • Power Supply Mode: the charger can be used as a stabilized power supply with adjustable maximum current output.
  • Showroom Mode: the GYSFLASH charger compensates for power consumption when customers use vehicle features in a showroom environment.



ORDER NOW



AUTOMATIC CHARGING 100%


  • A 9-stage charging curve ensures maximum battery performance and extended lifespan.
  • Capability to recover deeply discharged batteries with voltage >2 V (automatic SOS recovery mode).


UNIQUE SECURITY

  • Protection of vehicle electronics: safeguards against short circuits, reverse polarity, and battery overcharging. Anti-spark technology.
  • Replaceable fuses to prevent improper use.
  • Temperature sensor to prevent overheating of internal electronic components.
  • Automatic standby mode when the battery is disconnected.


ERGONOMY

  • Compact and durable housing with a front-mounted cable reel (2 × 5 m).
  • Shock-absorbing pads for impact and vibration protection.

* Additionally, optional wall mounting with the Magnetfix magnetic system.
